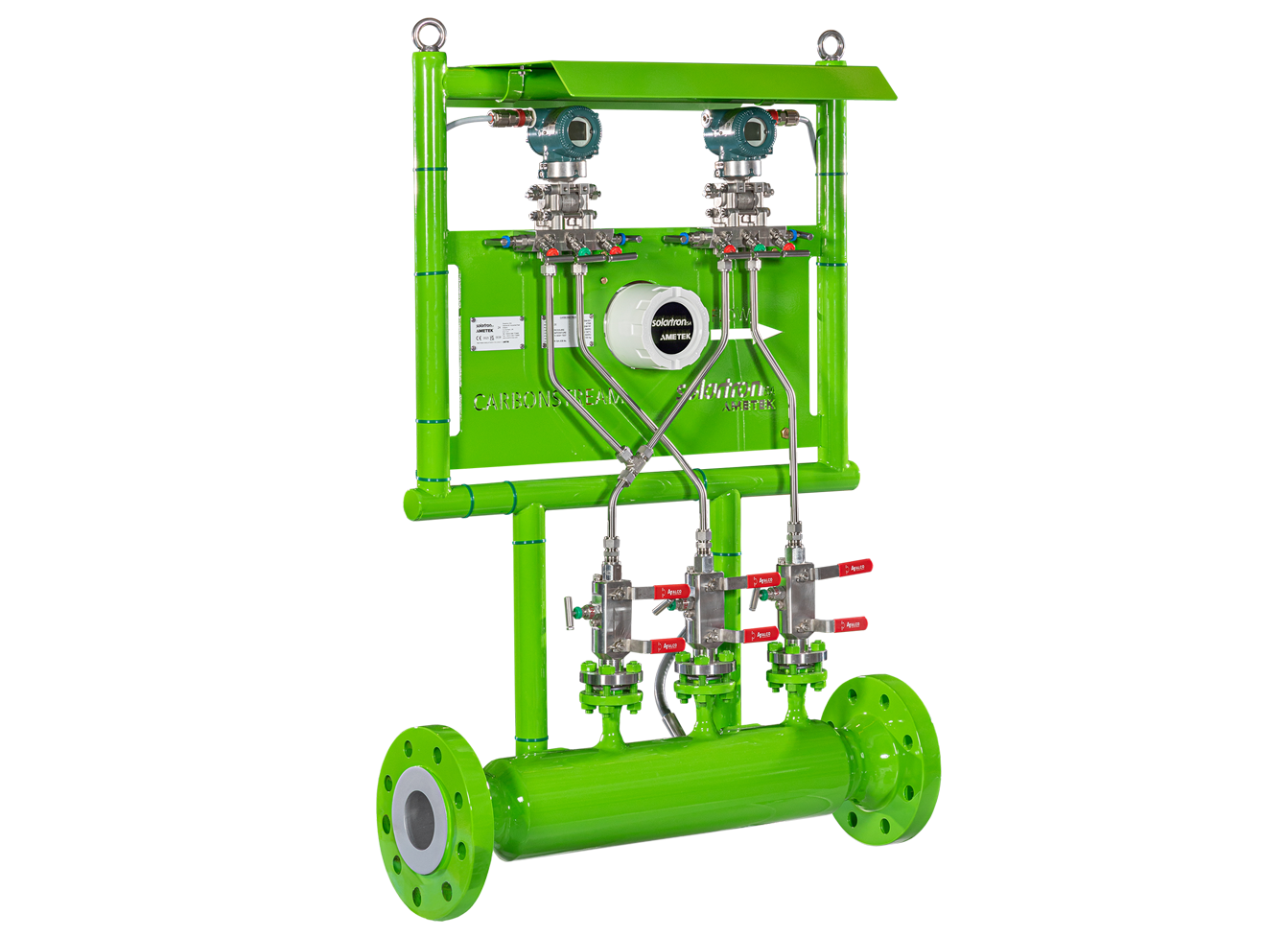

Achieving Net Zero with Carbonstream™ CO2 Flow Meter

As the world accelerates towards Net Zero through Clean Energy solutions, Carbon Capture and Storage (CCS) plays a pivotal role in sequestering large quantities of Carbon Dioxide (CO₂) in underground geological formations. Accurate CO₂ measurement at each stage of capture, transport and storage is essential for success.

Solartron ISA, a world-renowned supplier of flow measurement solutions, proudly presents the Carbonstream range of CO₂ flow meters. Designed for the complex and technically demanding CCS market, Carbonstream offers:

• Versatility: Suitable for both gas phase and dense phase applications.

• Real-Time Accuracy: Provides precise flow measurement data from startup to maximum operating conditions.

• Scalable Technology: Eliminates the need for multiple meter streams, covering broad operational ranges.

• Compliance: Meets current Emissions Trading Schemes (ETS) uncertainty requirements (2.5%) and is prepared for future reductions below 1.5%.

With decades of experience in designing and manufacturing highaccuracy flow meters, Solartron ISA ensures that Carbonstream delivers reliable data even in the harshest environments, making it the perfect partner for CO₂ Transport and Storage projects.


• Plug and Play Design
• Real Time Mass Flow Output
• Low Permanent Pressure Drop
• High Accuracy
• Equations of State Calculations
• Uncomplicated and Robust
• Low Opex
• No Recalibration Required
• Ideal for Well Management
• Ideal for Fiscal Allocation Applications


Measurement Applications
• Carbon Capture and Storage (CCS)
• Enhanced Oil Recovery using CO₂
• Hazardous Area
• Remote Locations
• Ideal for High Pressure Applications
•Liquid Detection (Gas Applications)

  • Specifications +


    Measurement Technique
    Venturi
    Pressure Loss Ratio (CO₂ gas applications)

    Typical Operating Range
    Turndown >8:1
    Process temperature range -40 to 120°C

    Typical Performance
    Uncertainty (95% confidence level)
    Mass flow rate <1%

    Typical Repeatability
    Mass flow rate 0.15%
    Permanent Pressure Loss
    Pressure loss specific to application <1 bar
    ns
    Mechanical Specificatio
    Standard line sizes 2” through 24” nominal bore
    Pressure class ANSI class 300# to 2500#
    (API ratings on request)
    Meter body material Duplex UNS31803 as standard
    Alternative pressure ratings (ANSI/API 15K), temperature rating, sizes and material available on request

    Instrumentation
    Standard field instrumentation comprising:
    Differential pressure – class-leading digital sensor
    Gauge pressure – secondary variable from DP sensor
    Temperature – non-intrusive sensor

    Installation Requirements
    Horizontal installation (vertical on request)
    Upstream straight length: calibrated spool available for allocation systems when specified
    Downstream straight length: None required

    Data Acquisition Options and Power Requirements
    1. Carbonstream Hazardous Area Flow Computer
    Power supply 16V to 32V DC – Full Load < 10W
    Signal Output RS485
    Ethernet Modbus RTU

    2. Ultra Low Power Hazardous Area FloCalculator
    Power supply 16V to 32V DC – Full Load < 2W
    Signal Output RS485 Modbus

    User Required Inputs
    Rich Stream CO₂ Composition
    Hazardous Area Approval
    ATEX / IECEx / UKCA
    II 2G Ex db IIB T6 Gb -40°C ≤ Ta ≤ 60°C






  • Brochure +

  • Carbonstream Questionnaire +
